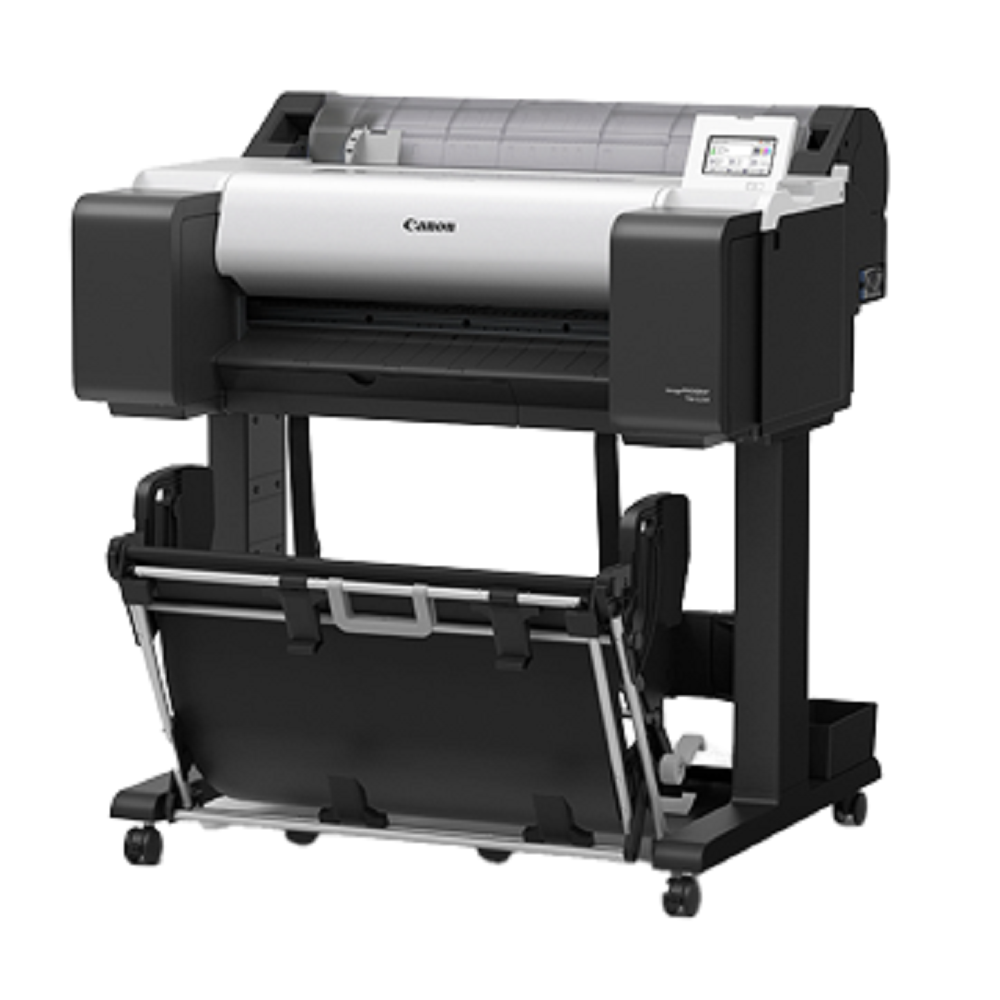

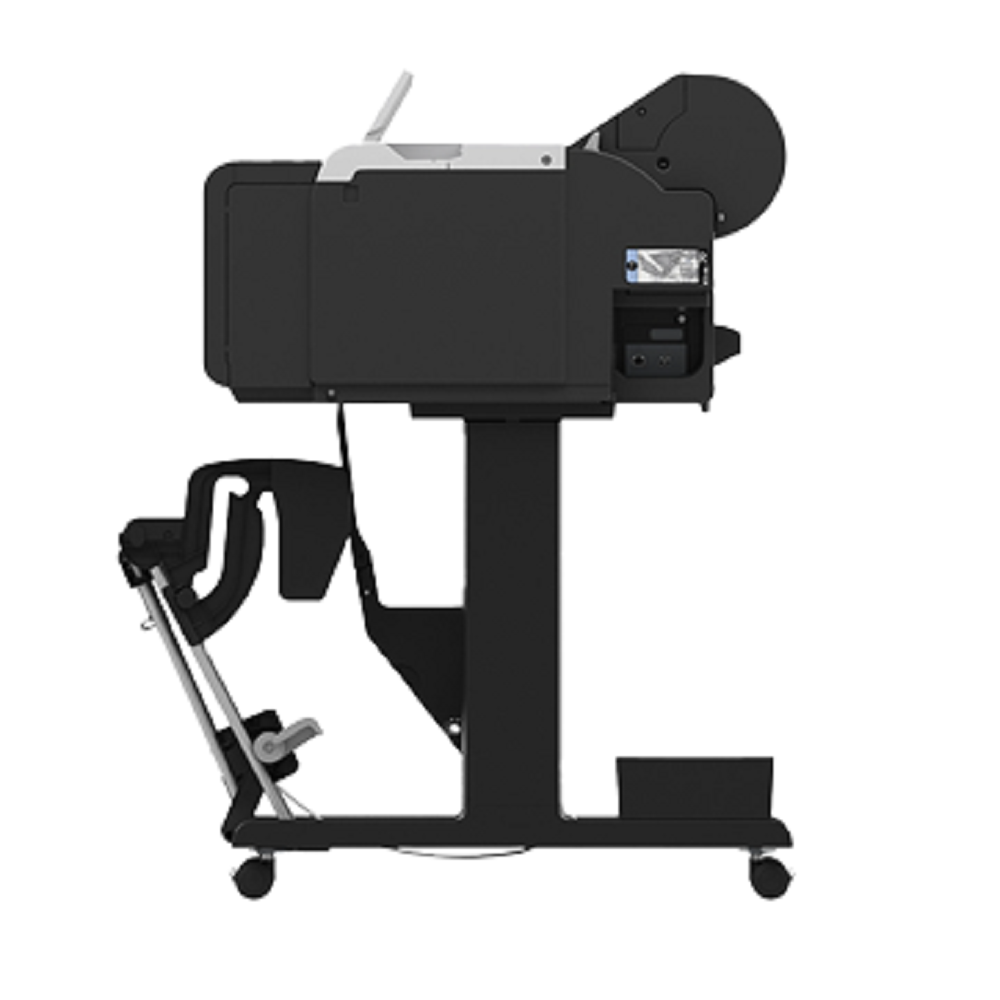

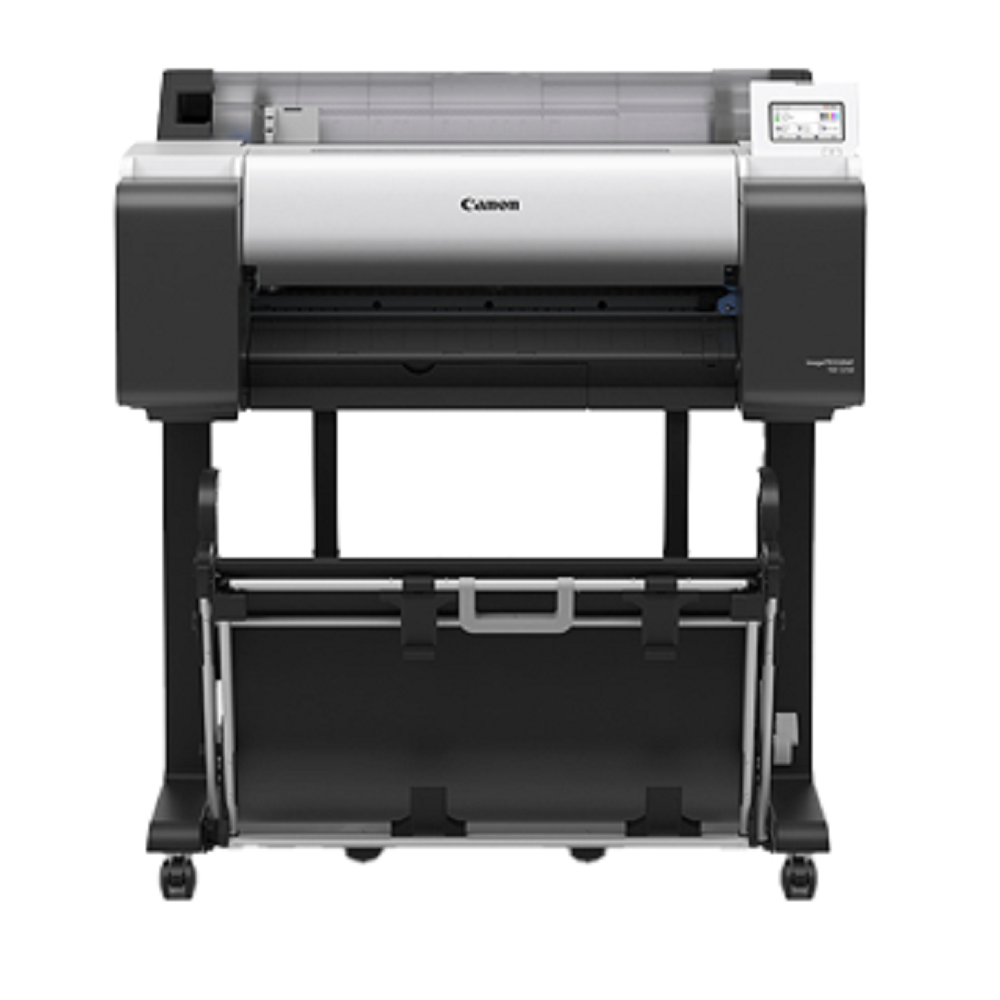

canon plotter imagePROGRAF TM-5250

Name: canon plotter imagePROGRAF TM-5250
Brand: ALL TECH SOLUTIONS
Price: 99700 INR
Availability: InStock

Price 99700 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

canon plotter imagePROGRAF TM-5250 Specification

Software Detail
imagePROGRAF Printer Driver, Direct Print & Share, PosterArtist Lite, Print Plug-In for Office, Print Studio Pro, and Accounting Manager.

Resolution
2400 x 1200 dpi

Power Supply
AC 100-240V (50-60Hz)

Interface
USB 2.0 High-Speed, 10/100/1000 Base-T/TX

Paper Feed Width
Roll Paper: 203.2-610mm, Cut Sheet: 203.2-610mm

Cache Capacity
256MB

Cutter Pressure
Not applicable (for plotters/printers)

Cutting Speed
Not applicable (for plotters/printers)

Cutting Length
Up to 18 meters (dependent on media)

Cutting Width
Up to 36 inches (914mm)

Driver
Canon Printer Driver for Windows/Mac

Repeat Cutting
Not applicable (for plotters/printers)

Size
Approx. 1268 x 885 x 1060mm (With Stand, Basket open)

Power
Cons. Power: 52W or less (Operation); Sleep Mode: 3.6W or less

Voltage
100-240V AC

Working Temperature
15C to 30C

Roll Paper Diameter
150mm max

Noise level
44 dB(A) or less (Operation)

Installation Space
Approx. 1493 x 748mm

Hard Disk
500GB (optional)

Ink Tank Volume
130ml/300ml per color

Print Head
PF-06 Print Head

Media Thickness
0.07mm - 0.8mm

Display
3.0-inch color LCD touchscreen

Net Weight
Approx. 56kg (with stand, no ink or print head)

Ink Type
Lucia TD 5-color pigment ink (MBK, BK, C, M, Y)

About canon plotter imagePROGRAF TM-5250

Number of Nozzles	15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)
Maximum Print Resolution	2,400 x 1,200 dpi
Nozzle Pitch	1,200 dpi (2 lines)
Line Accuracy*1	0.1% or less
Ink Capacity	Sales Ink: 130 ml/300 ml (MBK/BK/C/M/Y)
Ink Type	Pigment Ink
Printer Language	SG Raster (Swift Graphic Raster) HP-GL/2, HP RTL JPEG (Ver. JFIF1.02) CALS G4*2
Printing Solutions	Printer Driver (Win/Mac versions), Direct Print Plus, Free Layout plus, PosterArtist Windows/Web & Lite, Wi-Fi Connection Assistant, PIXMA Cloud Link, Apple AirPrint (Mobile), Canon PRINT Inkjet/SELPHY (Mobile), Canon Print System (Mobile), uniFlow server
Management Solutions	Media Configuration Tool (includes Colour Customization Tool), Accounting Manager, Device Management Console, Quick Utility Toolbox
Standard Interfaces (Built-in)	USB B Port: (Series B, 4 pins) Hi-Speed USB Full Speed (12 Mbit/seconds) High Speed (480 Mbit/seconds) Bulk Transfer Network: IEEE 802.3 10base-T IEEE 802.3u 100base-TX IEEE 802.3ab 1000base-T SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP Wireless LAN: IEEE802.11 b/g/n WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) WPA3-SAE (AES) WPA-EAP (AES)3 WPA2-EAP (AES)3 WPA3-EAP (AES)*3
Standard Memory	2 GB

#CanonimagePROGRAFTM5250
#CanonTM5250
#CanonWideFormatPrinter
#CanonPlotter
#LargeFormatPrinter
#CanonPrinter

Superior Print Quality and Flexibility

Equipped with the advanced PF-06 Print Head and Lucia TD pigment ink, the TM-5250 produces sharp, rich graphics and text ideal for technical drawings and large-format posters. The printer supports both 130ml and 300ml ink tanks for all five colors, allowing for extended print runs and cost efficiency.

Seamless Operation and Intuitive Controls

Operation is streamlined via a 3.0-inch color LCD touchscreen, offering quick access to print settings and status. With a compact design, it fits within a space of approximately 1493 x 748mm, making it suitable for offices and print shops without sacrificing functionality.

Comprehensive Software Suite

The TM-5250 includes a robust suite of productivity tools such as imagePROGRAF Printer Driver, Direct Print & Share, PosterArtist Lite, and Accounting Manager. These applications cater to smooth workflow integration for both Windows and Mac users.

FAQ's of canon plotter imagePROGRAF TM-5250:

Q: How do I replace the ink tanks on the Canon imagePROGRAF TM-5250?

A: To replace an ink tank on the TM-5250, access the ink compartment via the front panel, select the color to be replaced, and follow the on-screen instructions on the 3.0-inch touchscreen. The system supports 130ml and 300ml ink tanks for each color, allowing for simple, tool-free changes.

Q: What types and sizes of media can the TM-5250 handle?

A: The TM-5250 supports roll papers and cut sheets ranging from 203.2mm to 610mm in width and accommodates media thickness from 0.07mm to 0.8mm. It can handle roll paper diameters up to 150mm, ideal for posters, CAD drawings, and presentations.

Q: When should I use the optional 500GB hard drive?

A: The optional 500GB hard disk is recommended for users who require frequent processing of large files, complex prints, or need to store jobs for advanced workflow management. It enhances performance during high-volume tasks and supports secure file handling.

Q: Where can I install the TM-5250 in my workspace?

A: The printer requires an installation space of approximately 1493 x 748mm, plus room to accommodate the media basket. It is suitable for offices, design studios, and educational institutions across India needing reliable, large-format printing.

Q: What is the benefit of using Lucia TD pigment ink in this plotter?

A: Lucia TD pigment ink provides outstanding color vibrancy and weather resistance, ensuring prints are both vivid and durable. This makes the TM-5250 ideal for applications demanding high-quality, long-lasting results, such as maps, banners, and engineering drawings.

Q: How can I connect the TM-5250 to my computer network?

A: The TM-5250 offers USB 2.0 high-speed connectivity and Ethernet (10/100/1000 Base-T/TX) for easy integration into various IT environments. Printer drivers for both Windows and Mac are included, supporting efficient network printing and management.
